Decorative thermometer

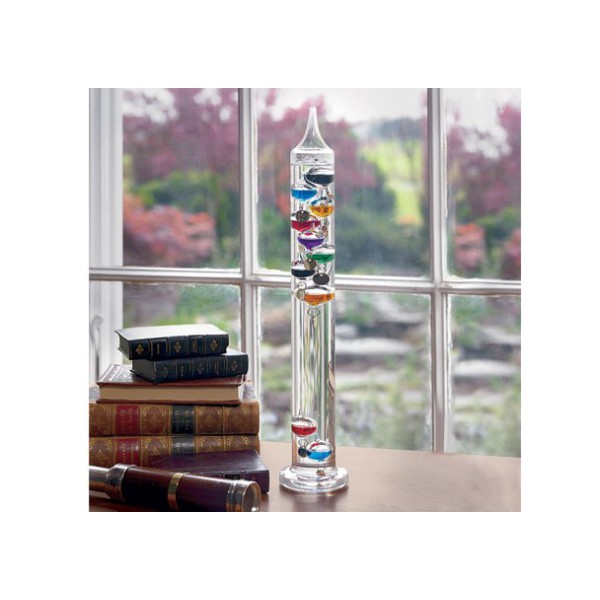

Based on a thermoscope made by Galileo Galilei in the early s. XVII. Fairly accurate thermometer and very simple, today it is basically used as decoration. The Galileo thermometer consists of a sealed glass tube which is filled with destilled water and several floating bubbles. The bubbles are made as glass spheres filled up with a colored liquid mixture. This liquid mixture contain alcohol, or it might simply be water with food coloring.

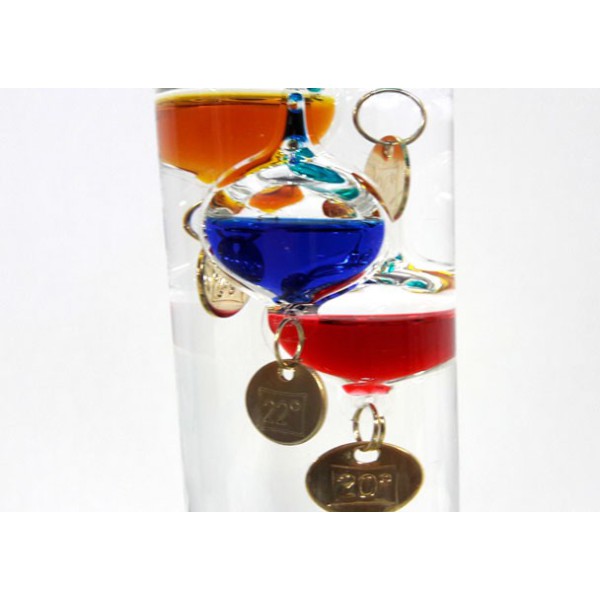

Attached to each bubble there is a little metal plate that indicates a temperature. A number and degree symbol are engraved in the plate. These metal tags are actually calibrated counterweights. The weight of each plate is slightly different from the others. Since the bubbles are all hand-blown glass, they aren't exactly the same size and shape. The bubbles are calibrated by adding a certain amount of fluid to them so that they have the exact same density. So, after the weighted plate are attached to the bubbles, each one differs very slightly in density (the ratio of mass to volume) from the other bubbles, and the density of all bubbles is very close to the  surrounding water density.

If you have read this question, then you know that an object immersed in a fluid experiences two major forces: the downward pull of gravity and the upward push of buoyancy. It is the downward force of gravity that makes this thermometer work.

The basic idea is that as the temperature of the air outside the thermometer changes, so does the temperature of the water surrounding the bubbles. As the temperature of the water changes, it either expands or contracts, thereby changing its density. So, at any given density, some of the bubbles will float and others will sink. The bubble that sinks the most indicates the approximate current temperature.
